IO Accelerators

Fastest Data Performance.
No Compromises.

Liqid IO Accelerators pack world record performance and high capacity in a small footprint to efficiently drive faster results.

Accelerate Outcomes with World-Record Data Performance

Liqid Element IO accelerators provide exceptional data performance, significantly reducing your time to results. Unlike traditional SSD architecture that limits performance outcomes, Liqid IO Accelerators are optimized for maximum IOPS, bandwidth, and throughput, resulting in exceptional performance in a compact, high-capacity design.

Conventional NVMe SSD

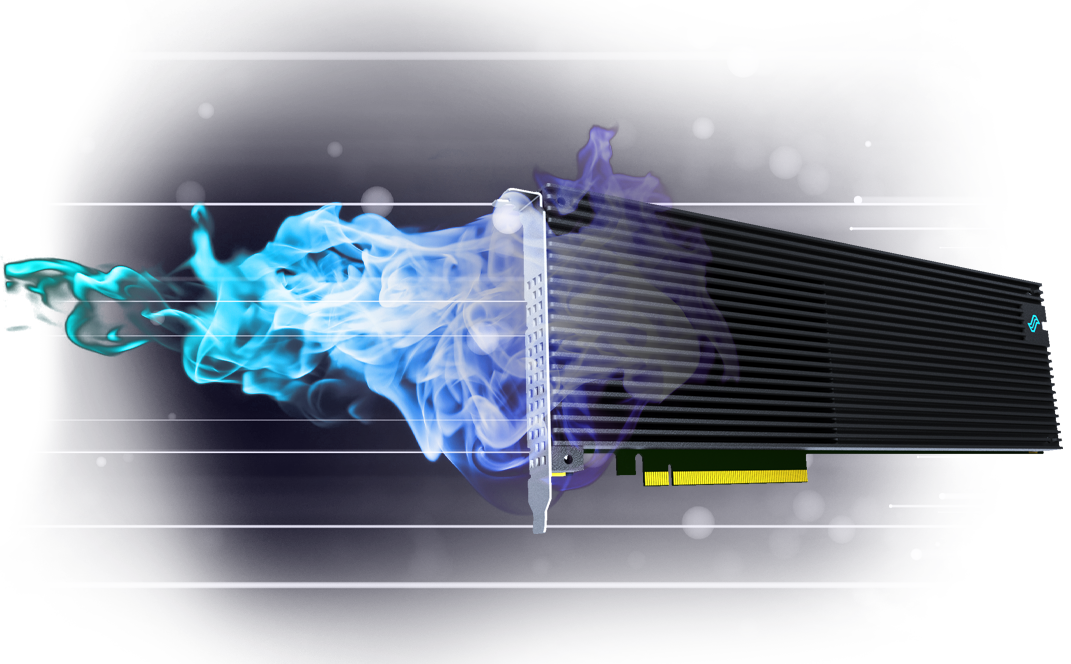

Liqid LQD4500 IO Accelerator

Read the LQD4500 Performance Report

Deliver Faster Results, Economically

Liqid Element IO Accelerators deliver unrivaled performance,capacity, and reliability in a compact footprint for efficient, faster results.

Maximize Data Performance

Meet today’s most challenging workload demands with Liqid IO Accelerators. With a performance optimized NVMe PCIe Gen 4 design, Liqid delivers 4M IOPS, 26GB/s throughput, and only 10μs latency for world record performance.

Satisfy High-Capacity Demands

Satisfy large data demands with up to 32TBs of NVMe capacity packed into a single Liqid IO Accelerator. Whether providing low-latency capacity for large AI/ML workloads or feeding data directly into accelerators like NVIDIA GPUs, Liqid meet today’s needs and scales to meet tomorrows.

Do More With Less

Meet new workload demands more efficiently with Liqid’s compact PCIe Gen 4.0 x16 add-in-card form factor. With unbeatable performance density that doesn’t consume a single drive bay, you can now accelerate new and existing workloads on a wider variety of server form factors on fewer storage devices.

IO Accelerator Specs

LQD4500

LQD3000

LQD4900

Bus Interface

Formfactor

Media Type

Raw Capacity

Seq Read (128KB)

Seq Write (128KB)

Random Read (4KB)

PCIe Gen 4 x16

PCIe Gen 3 x8

PCIe Gen 4 x16

Full-Height Full-Length

Half-Height Half-Length

Full-Height Full-Length

Up to 32.7TB

Up to 16TB

3TB

TCL 3D NAND

Intel® Optane™

6.6 GB/s

6.9 GB/s

7 GB/s

26 GB/s

7.0 GB/s

22 GB/s

4.2M IOPS

1.7M IOPS

2.7M IOPS

RandomWrite (4KB)

LQD3900

PCIe Gen 3 x16

Intel® Optane™

7.2 GB/s

1.7M IOPS

10μs

20μs

Half-Height Half-Length

Up to 1.5TB

6.1 GB/s

971K IOPS

519K IOPS

2.2M IOPS

1.6M IOPS

Write Latency
